Cold Press Seed Oil Machine with 15kg per hour

Cold Oil Press

HOME Products Cold press

Cold press 15kg

Size97 * 83 * 140 cm (W * L * H)
Weight300 kg
Power Consumption5.6Kw
Rated voltage220v - 380v
Volume of pressed oil15Kg(hr)
Extraction rate50%

Features

Korea's first cold oil press patent registered product

The only product registered by applying for a cold pressing patent in Korea is our cold oil press. The perfect cold pressing oil machine that produces oil at 40 degrees.

Cold oil press machine with easy maintenance

Easy to maintenance.

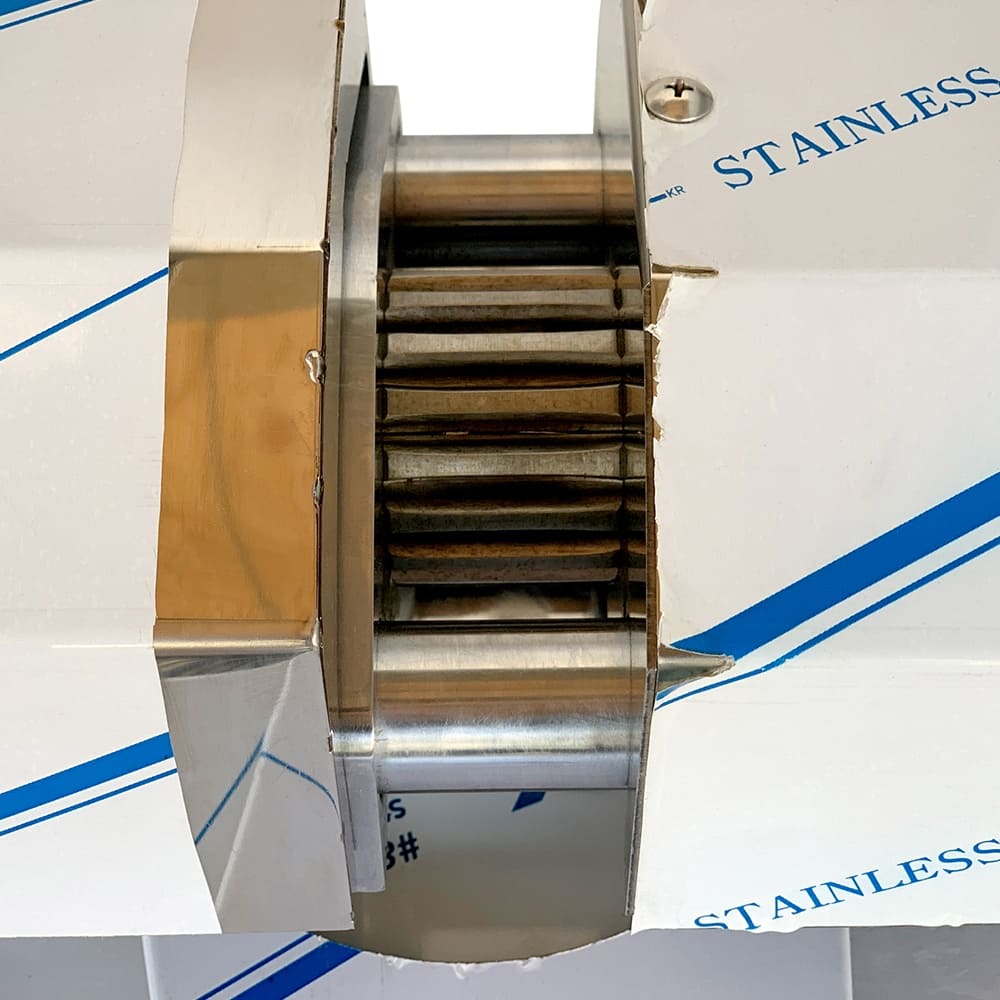

Cylinder parts and screws are easily disassembled, so you can clean every corner and use them very hygienically.

Lightweight Portable Cold Press

It is a machine that can be easily moved in a vehicle and is equipped with a purifier to refine oil. When you squeeze raw perilla seeds without roasting them at all, the temperature of the oil is less than 50 degrees, and can get 100% omega-3 nutrition.

Various seeds and nuts for cold pressing

The National Cold Press Machine is a cold press and hot press machine that can squeeze various oils at low temperatures, including sesame oil, perilla oil, walnut oil, pine nut oil, sancho seed, rape seed, camellia seed, radish seed, red flower seed, pumpkin seed, hemp seed, sunflower seed, citron seed, and green tea seed.

※ It can get any types of oil from the seeds and nuts which has 10% of oil contents rate.

Video

How to use

In case for raw seeds pressing.

- Preheating : In summer, set up the temperature by 70 degrees for No. 1, 2, 3 In winter, 80 degrees and leave 30 min before use a machine. After done preheating, please check the oil cake with put the little amount first and then use it. - Control handle : At the first step is maximum tight up and then fix after release the 2.5 turn. Oil cake thickness best position is 0.5mm for pressing the oil. - Oil cake thickness : Each seeds has a different oil cake thickness. Thin oil cake is good for oil rate. When use a very low temperature then oil cake comes out paste state on the oil way. Also too much tight up the control handle then oil cake comes out on the oil way. At that time, stop the main motor and release the control handle a little bit then problem will be solve. - After use it : When done for every pressing, turn off the heater and please turn off the main motor switch after operate 3 min later.

In case for roasted seeds pressing

- Preheating : At the first step is maximum tight up and then fix after release the 2.5 turn. Oil cake thickness best position is 0.5mm for pressing the oil.

Grain control plate

Pull - normal sesame, Push - raw sesame, Center - cut off

Temperature of Refinery plate

Normal season 50 degree is good but winder could be increase a little bit.

How to clean up Refinery plate

Please use a soft flat scraper after turn off the comp switch with back position air lever for release the vacuum state.

Refill up comp oil

Check the comp oil gauge every 1 year and refill up if not enough the oil.

Oil Filter tank

Every 3~4 month, take off the oil from the oil filter tank.
